Working with layers in project

In the project TOC you can manage visibility of data layers and maps.

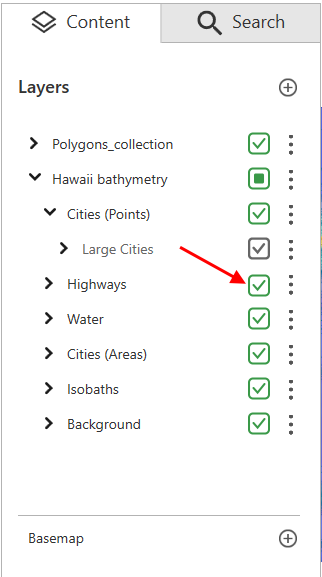

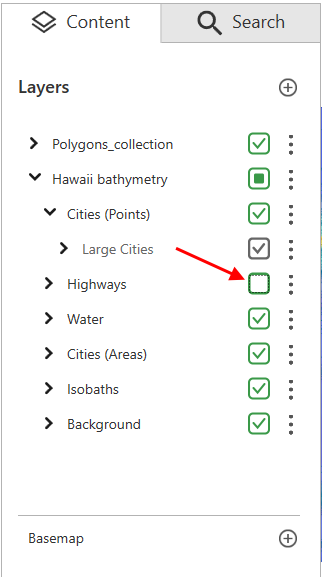

To turn off visibility of a data or map layer, select one or multiple layers and uncheck the box near the layer.

The layers will be hidden on the map.

To turn on visibility of a data or map layer, select one or multiple layers and check the box near the layer.

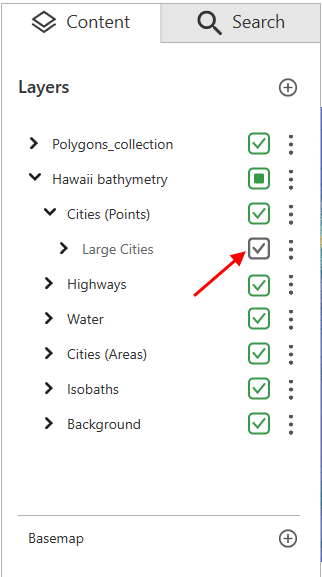

Layers with visibility set for specific scales will be marked with the grey tick in the project TOC.

When changing the map scale and falling within visibility scale range, the tick near the layer will become green and the layer will be shown on the map.

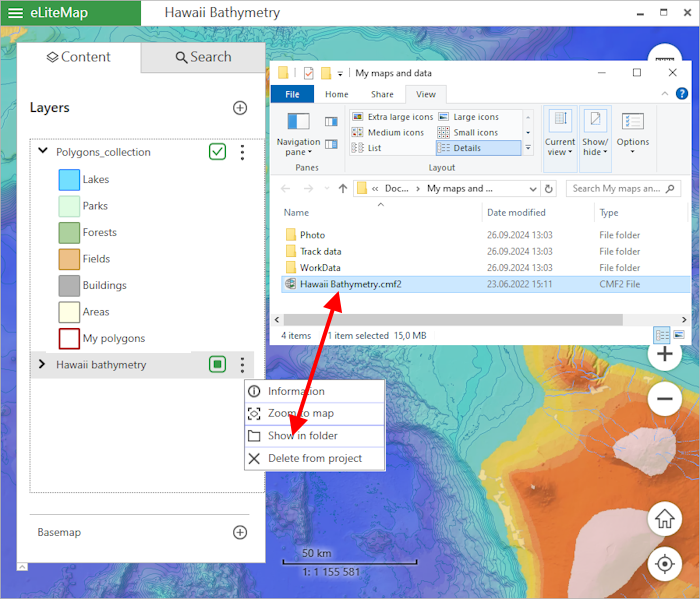

To open the sources of the layers selected in the project TOC in File Explorer window, press the three dots icon near the layer name and select Show in folder .

For map layers, the folder containing the layers will be opened and the appropriate file will be selected.

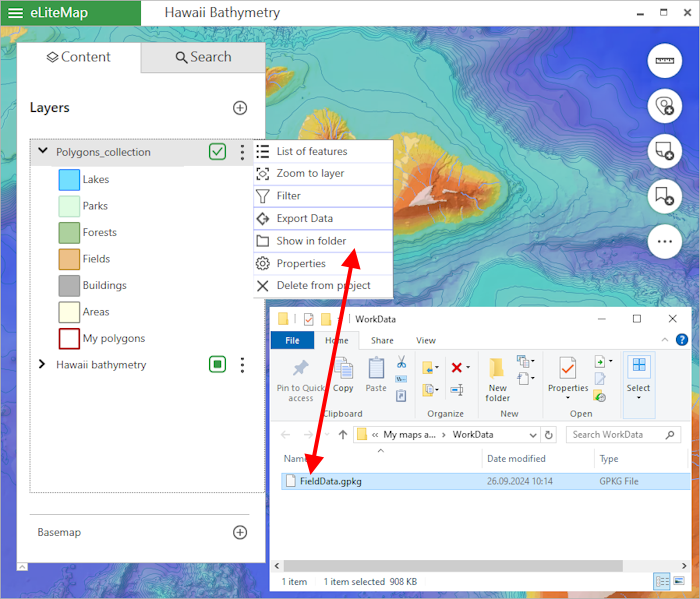

For GeoPackage layers, the folder containing the appropriate .GPKG file will be opened.

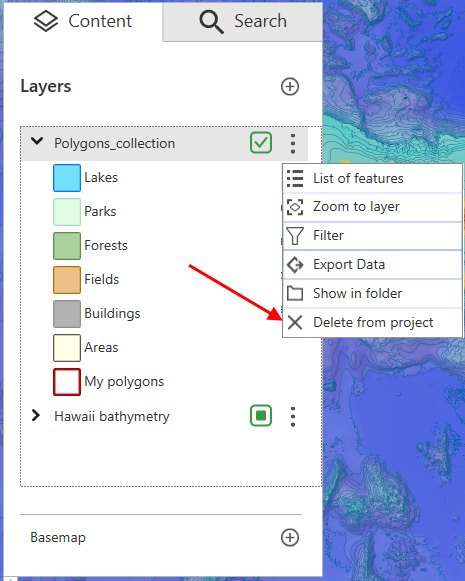

To delete data layers, select one or multiple layers, right-click to expand the layer menu in the table of contents or click the three dots icon near the required layer, and select Delete from project.

The layer with data will be deleted from the project but not from your computer, so you will be able to add it again, if needed.

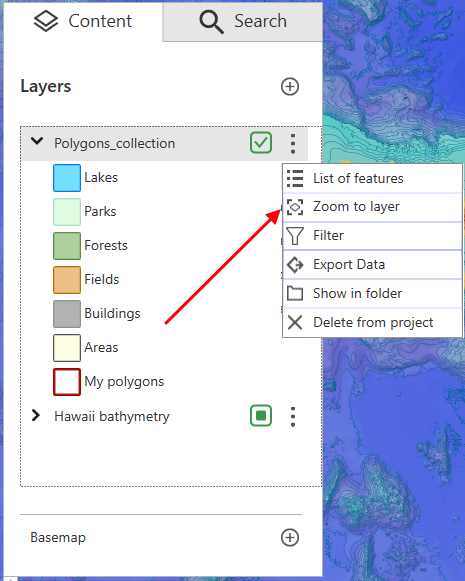

In addition, you can zoom to layers on your map. To do this, select one or multiple layers, right-click to expand the layer menu in the table of contents or click the three dots icon near the required layer, and select Zoom to layer.
